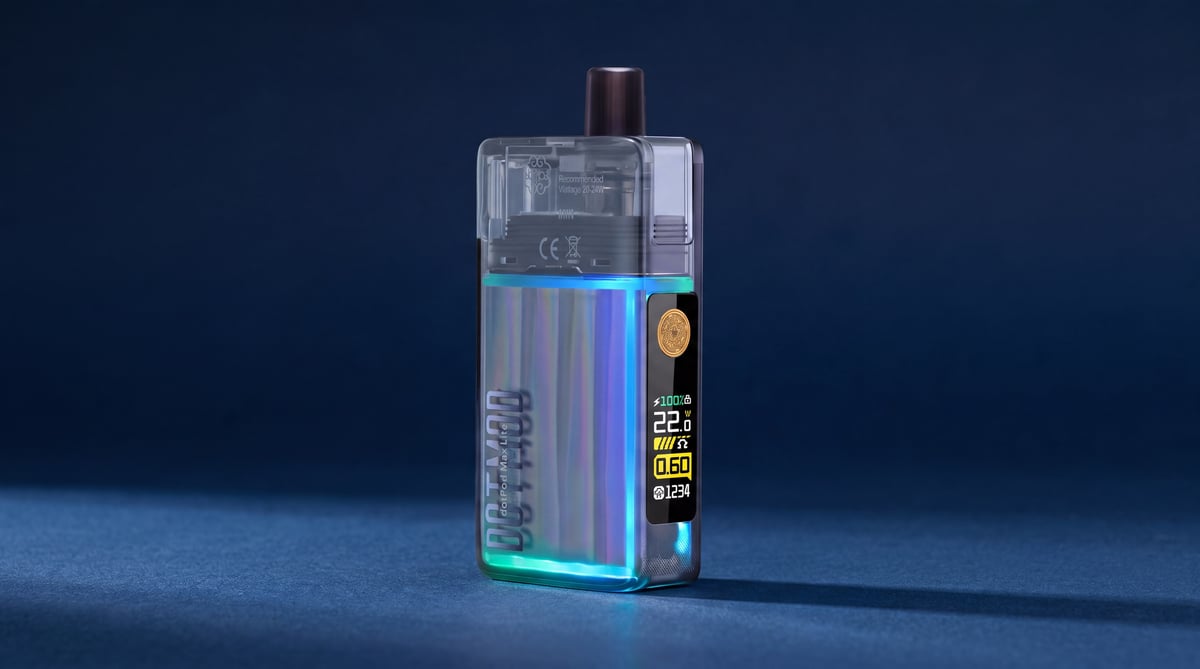

DotMod DotPod Max Lite
A 60W refillable pod kit with a 2100mAh battery, adjustable airflow, and a colour screen, suited to MTL, RDL, and DL vapers who want premium build quality in a compact everyday carry.
Buy this device
DotMod DotPod Max Lite
Set up guide & tips
Filling the Pod
The DotPod Max Lite uses a top-fill cartridge, so there is no need to disassemble the pod to add liquid. Open the fill port on the top of the cartridge, fill to just below the maximum line, and close the port firmly before inserting the pod into the device.
Priming a New Coil or Cartridge
With the built-in coil cartridges (0.6 ohm and 1.0 ohm), the coil is fixed inside the pod, so you cannot drip directly onto exposed wicking material. Instead, fill the pod, seal it, then leave it to sit for five minutes before vaping. This gives the e-liquid time to saturate the wick fully and avoids a dry or burnt hit on first use.
If you are using an empty cartridge with a swappable DotCoil, seat the coil into the pod before filling. Same approach: fill, seal, wait five minutes.
Which E-liquid to Use
1.0 ohm cartridge (MTL): This is your tight, cigarette-style draw. Use nic salts or 50/50 e-liquids. Nic salts at 10mg or 20mg work well here and deliver a smooth, satisfying hit without harshness. Keep wattage toward the lower end of the output range for this coil.
0.6 ohm cartridge (RDL/DL): This is a more open, airy draw with more vapour. Use a higher-VG e-liquid, such as a shortfill topped up with a nic shot, or a freebase liquid at 3mg or 6mg. Higher VG liquid handles the warmer, higher-wattage output of this coil better than a thin 50/50.
DotCoils in an empty cartridge: Resistance and liquid recommendation will vary by the specific DotCoil fitted. Check the coil packaging for the recommended wattage range and match your liquid VG ratio accordingly.
Airflow and Wattage
The DotPod Max Lite has adjustable airflow, which lets you fine-tune the draw resistance independently of wattage. Start with a mid-range wattage for whichever coil you are using, adjust the airflow to your preferred draw, then dial wattage up or down to taste. The 0.87-inch colour screen shows your current wattage clearly, and you can also switch between the Core, Volt, and Mech screen themes if you want to change the display look.
TPD Note
Pod capacity on UK-sold devices is capped at 2ml under TPD regulations. If you are buying replacement cartridges, UK-compliant pods will reflect this. The 5ml figure cited on some overseas retailer pages refers to non-UK versions.
Specifications
| Specification | Value |
|---|---|
| Size | 94.5 x 43.0 x 22.5mm |
| Capacity | 2100mAh |
| Output Power | 5W to 60W |
| Battery Type | built-in |
| Charging | USB-C 2A |
| Resistance Range | 0.6 ohm, 1.0 ohm built-in, or DotCoils (empty pod) |
Frequently asked questions
What is the DotPod Max Lite?
The DotPod Max Lite is a 60W refillable pod kit from DotMod. It runs on a built-in 2100mAh battery, has a colour screen, adjustable airflow, and works with built-in coil cartridges at 0.6 ohm and 1.0 ohm, or empty cartridges loaded with DotCoils.
What is the difference between the DotPod Max Lite and the DotPod Max?
The Lite is a streamlined version of the DotPod Max, sharing the same coil and cartridge platform. The core output range and battery capacity are the same at 60W and 2100mAh. The Lite typically comes in at a lower price point and may differ in finishing details, but pod and coil compatibility is shared across both.
What coils and pods fit the DotPod Max Lite?
It takes two types of cartridge. Built-in coil cartridges come in 0.6 ohm (RDL/DL) and 1.0 ohm (MTL) versions, where you replace the whole pod when the coil is done. Empty DotPod Max cartridges accept the wider DotCoil range, letting you swap coils without replacing the pod each time.
Does the DotPod Max Lite have an RBA option?
Based on current search interest, some users are looking for an RBA option for the DotPod Max Lite. DotMod does produce RBA heads for some of their platforms, but compatibility with the DotPod Max Lite cartridge system is not confirmed at time of writing. Check directly with DotMod or your retailer before purchasing an RBA section for this device.
What e-liquid should I use with the DotPod Max Lite?
For the 1.0 ohm MTL cartridge, use nic salts or 50/50 e-liquids at up to 20mg. For the 0.6 ohm RDL/DL cartridge, use a higher-VG liquid such as a shortfill with a nic shot, keeping nicotine at a comfortable level. Avoid high-VG liquids in the MTL pod as the thicker consistency can restrict wicking.
How do I charge the DotPod Max Lite?
Charge via the USB-C port at up to 2A. Use a quality USB-C cable and a compatible charger. The colour screen displays battery level so you can monitor charge state easily. Avoid leaving the device on charge unattended overnight as a general best practice with any built-in battery device.
